Jaw Crusher
ROCK-2-85x80

Crushers

Jaw Crushers

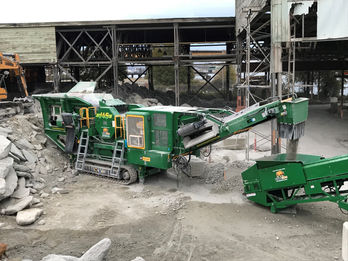

Jaw Crushers are largely used throughout the world by the aggregate, mining, construction, demolition, road building, and recycling industries.  Their large size and feed opening enable jaw crushers to receive a larger feed size.

​

Highly portable with the ability to crush most types of material, including hard granite, sand & gravel, blasted rock, Concrete and asphalt, make the jaw ideally suited for use as the primary crusher in your crushing spread.

J45R-scaled_edited

Jaw Crushers

mccloskey-logo

Jaw Crushers


  • JAW

  • 890mm (35″) wide x 500mm (20″) Jaw Crusher

  • Reverse crushing

  • 218Hp (162kW) Volvo D5 T3 or T4 engine

  • Open chassis design

J3cr_LHS_BACK (1).png

  • JAW

  • 890mm (35″) wide x 500mm (20″) Jaw Crusher

  • Swing out radial return conveyor.

  • Double Deck recirculation screen

  • Fast setup time

J40-Render (1).jpg

  • JAW

  • 1016mm (40”) x 610mm (24”) single toggle jaw.

  • Hydraulic direct drive grizzly feeder

  • High capacity hydraulic folding hopper

  • 900mm (36″) main conveyor


  • JAW

  • 1060mm (42″) wide x 700mm (28″) single toggle jaw.

  • 1.5 or 2 deck recirculating screenbox.

  • Quick release jaw for transport.

  • Fast setup time

J4R_NEW_LHS_BACK (1).png

  • 1060mm (42″) wide x 700mm (28″) single toggle jaw.

  • 1.5 or 2 deck recirculating screenbox.

  • Open chassis design for ease of maintenance.

J45_LHS_FRONT_ISO_Small (3).png

  • 1140mm (45”) x 688mm (27”) single toggle jaw

  • High-capacity folding hopper

  • 261kW (350Hp) C9 / C9.3 Cat engine.

  • I-beam plate fabricated chassis construction.

J45_LHS_FRONT_ISO_Small (3).png

  • 1140mm (45”) x 688mm (27”) single toggle jaw

  • Track or Track c\w Wheel bogie.

  • 261kW (350Hp) C9 / C9.3 Cat engine.

  • Integrated hydraulic folding hopper.

J50-LHS-BACK-ISO-1 (1).png

  • 1270mm (50”) x 735mm (29”) single toggle jaw

  • Large gap between crusher discharge and main conveyor feedboot.

  • 261kW (350Hp) – 269kW (361Hp) engine options

J6-LHS-BACK (1).png

  • 1200mm (48″) wide x 864mm (34″) single toggle jaw.

  • Deeper jaw chamber for hard rock applications

  • Choice of CAT or Volvo LRC, Tier 4/Stage 5 engines.
